1003
.jpg)

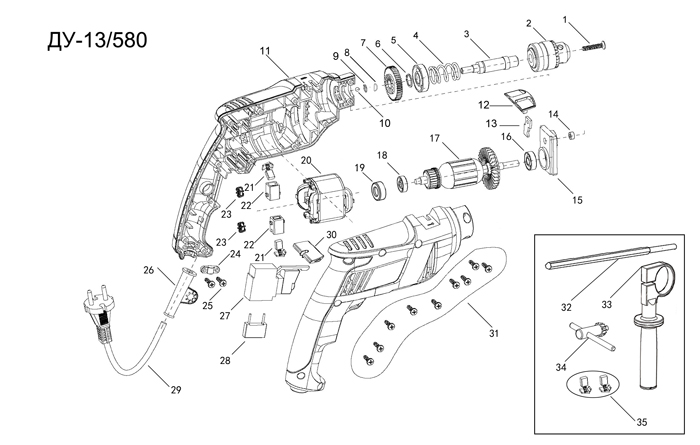

| 1003 SPARE PARTS LIST | ||
| Part No. | Part Name | Qty(数量） |
| 1 | Screw M6*25 | 1 |
| 2 | Chuck 13MM | 1 |
| 3 | Spindle Type 100 | 1 |
| 4 | Spring M1.5*12.4*4 | 1 |
| 5 | 6001 Bearing | 1 |
| 6 | Washer 12 | 1 |
| 7 | Big gear(650w) | 1 |
| 8 | Wire clamp | 1 |
| 9 | O-ring | 1 |
| 10 | Left motor housing | 1 |
| 11 | Impact button | 1 |
| 12 | Impact iron | 1 |
| 13 | Impact aluminum block | 1 |
| 14 | 608 Bearing | 1 |
| 15 | Rotor/Armature | 1 |
| 16 | 607 Bearing | 1 |
| 17 | Stator | 1 |
| 18 | Carbon brush | 2 |
| 19 | Brush holder(650w) | 2 |
| 20 | Inductance length 0.5 MM | 2 |
| 21 | Cord clip | 1 |
| 22 | Screw ST4*16 | 2 |
| 23 | Wire sheathing | 1 |
| 24 | Switch | 1 |
| 25 | Capacitor M0.22 | 1 |
| 26 | Cable | 1 |
| 27 | Ejector pad | 1 |
| 28 | Right motor housing | 1 |
| 29 | Screw M4*14 | 9 |
| 30 | Guide | 1 |
| 31 | Handle | 1 |
| 32 | Key of chuck | 1 |
| 33 | Bearing sleeve | 1 |
