DIU13
.jpg)

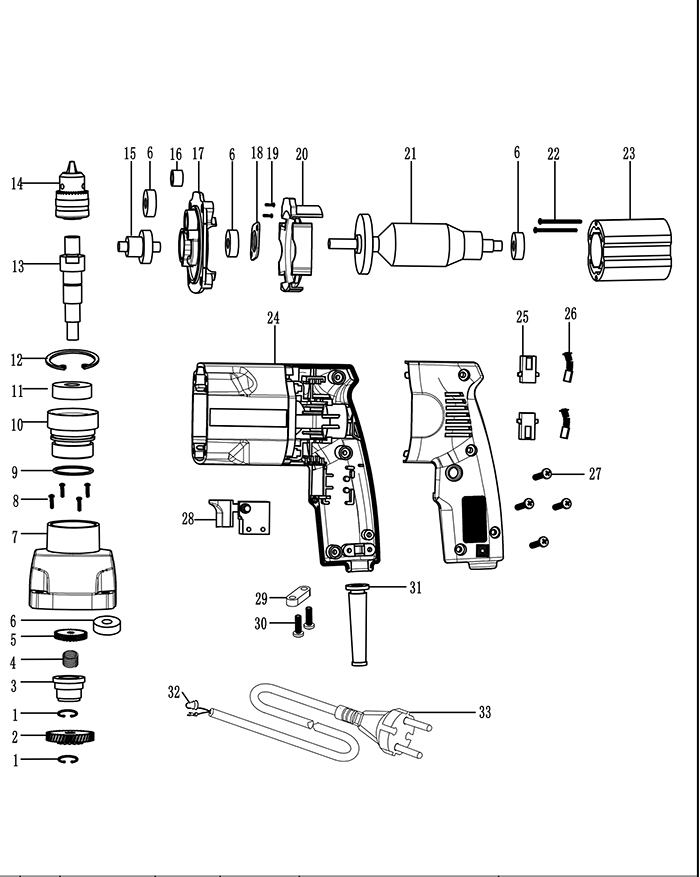

| DU13爆炸图对应清单 | ||
| 序号 | 名称 | 数量 |
| 1 | 12 Washer | 2 |
| 2 | Gear | 1 |
| 3 | Impact tooth | 1 |
| 4 | Impact spring | 1 |
| 5 | Drive gear | 1 |
| 6 | 608 Bearing | 4 |
| 7 | Gear box | 1 |
| 8 | ST 5*35 Screw | 4 |
| 9 | O-ring | 1 |
| 10 | Impulse transducer | 1 |
| 11 | 6002 Bearing | 1 |
| 12 | 32 Washer | 1 |
| 13 | Spindle | 1 |
| 14 | 13MM Chuck | 1 |
| 15 | Densmedius | 1 |
| 16 | 0908 Bearing | 1 |
| 17 | Middle cover | 1 |
| 18 | Cover clamp | 1 |
| 19 | M4*10 Screw | 2 |
| 20 | Baffle plate | 1 |
| 21 | Rotor | 1 |
| 22 | ST 4*50 Screw | 2 |
| 23 | Stator | 1 |
| 24 | Motor housing | 1 |
| 25 | Brush holder | 2 |
| 26 | Carbon brush | 2 |
| 27 | 4*16 Screw | 4 |
| 28 | Switch | 1 |
| 29 | Cord clip | 1 |
| 30 | ST 4*16 Screw | 2 |
| 31 | Wire sheathing | 1 |
| 32 | Wire cap | 1 |
| 33 | Cable | 1 |
