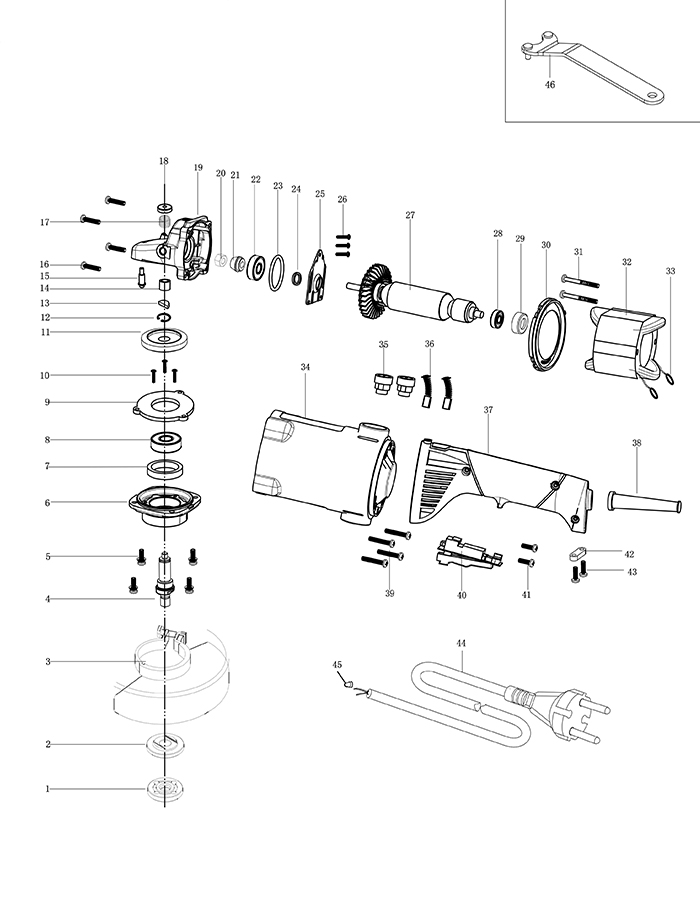

日立125
.jpg)
| 125 Spare parts | ||
| No. | Name | Qty |
| 1 | Outer flange | 1 |
| 2 | Inner flange | 1 |
| 3 | Wheel guard | 1 |
| 4 | Spindle | 1 |
| 5 | Screw 5*14 | 1 |
| 6 | Front cover | 1 |
| 7 | Sponge mat 27*21*5 | 1 |
| 8 | 6202 Bearing | 1 |
| 9 | Three hole gland | 1 |
| 10 | Screw | 3 |
| 11 | Gear | 1 |
| 12 | 15 Circlip | 1 |
| 13 | Semicircle key | 1 |
| 14 | Bearing sleeve | 1 |
| 15 | Self lock pin | 1 |
| 16 | Screw ST 5*22 | 4 |
| 17 | Self lock spring | 1 |
| 18 | Self lock cap | 1 |
| 19 | Gear box | 1 |
| 20 | Nut | 1 |
| 21 | Pinion | 1 |
| 22 | Bearing | 1 |
| 23 | Flat ring(32.8*29.8*4) | 1 |
| 24 | Sponge mat 21.5*16*3 | 1 |
| 25 | Three hole gland | 1 |
| 26 | Screw 4*12 | 3 |
| 27 | Rotor | 1 |
| 28 | 608 Bearing | 1 |
| 29 | 18 Bearing sleeve | 1 |
| 30 | Baffle plate | 1 |
| 31 | Screw ST 5*60 | 2 |
| 32 | Stator | 1 |
| 33 | Pullback ring 350 | 2 |
| 34 | Motor housing | 1 |
| 35 | Brush cover | 2 |
| 36 | Carbon brush | 2 |
| 37 | Handle | 1 |
| 38 | Wire sheathing | 1 |
| 39 | Screw ST 5*18 | 4 |
| 40 | Switch | 1 |
| 41 | Screw ST 4*16 | 2 |
| 42 | Cord clip | 1 |
| 43 | Screw ST 4*16 | 2 |
| 44 | Cable | 1 |
| 45 | Wiring cap | 1 |
| 46 | Wrench | 1 |
